Manufactured component

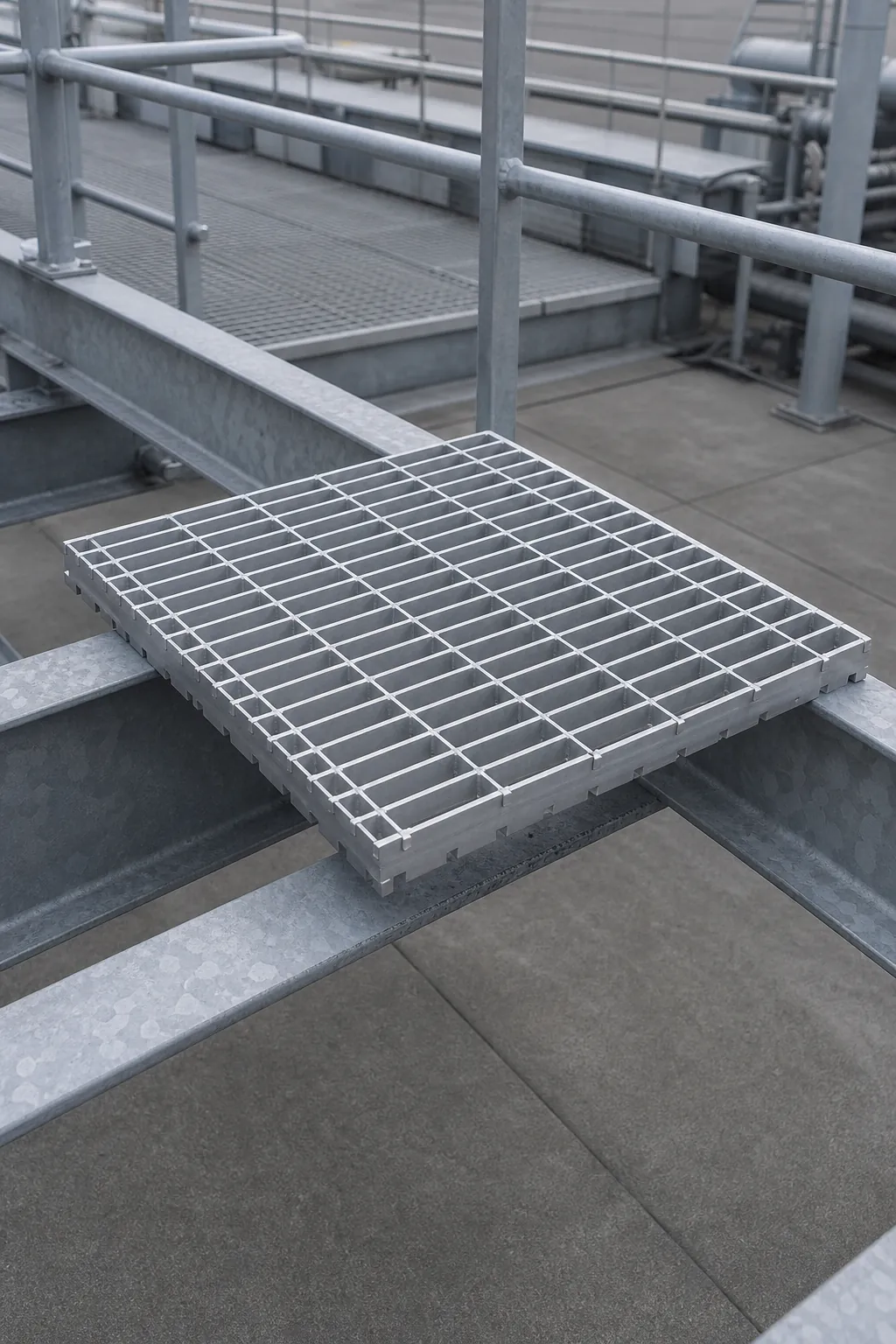

Aluminum Bar Grating
Press-locked aluminum bar grating — lightweight, corrosion-resistant flooring for marine, water treatment, rooftop and architectural applications.
Material & finish optionsCarbon steel / SS400 — HDGStainless steel — 304 / 316LOther materials on request
Configured for industrial projects
Built around your operating conditions.
Press-locked aluminum bar grating — lightweight, corrosion-resistant flooring for marine, water treatment, rooftop and architectural applications.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
What we supply
- Material: 6063-T5 aluminium alloy (standard) or 6061-T6 (higher strength). To ASTM B221 / EN 755

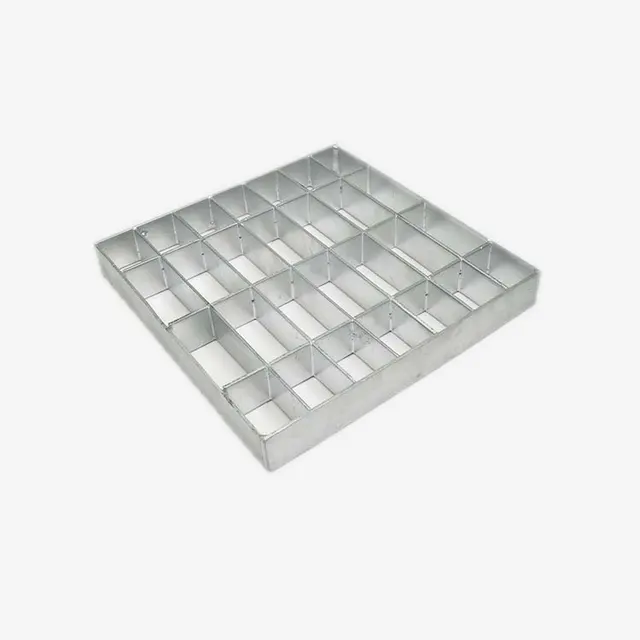

- Press-locked construction — bearing bars mechanically locked to cross bars. No welding. Clean appearance
- Bearing bars: 25 × 3, 32 × 3, 32 × 5, 40 × 5 mm. I-bar profiles available for further weight reduction
- Bar spacing: 30 mm (pedestrian), 40 mm (light industrial), 60 mm (wide opening). Cross bars at 50 or 100 mm
- Surface: mill finish (natural aluminium), anodised (10–25 µm) or serrated anti-slip
- Panel sizes: up to 1000 mm wide × 6000 mm long. Cut, notched and edge-banded per drawing
- Weight: approximately 1/3 of equivalent steel grating. Non-magnetic and spark-free
Used in
Industries
How to order
- Bar size, spacing and panel dimensions
- Finish: mill / anodised / serrated
- Edge banding and cut-out requirements
- Quantity and delivery destination
Supplied to your drawings and project standard. Load tables → · Downloads →
Selection support
What to confirm before quotation.
Share the application, load, span, material and finish with the RFQ.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
