Manufactured component

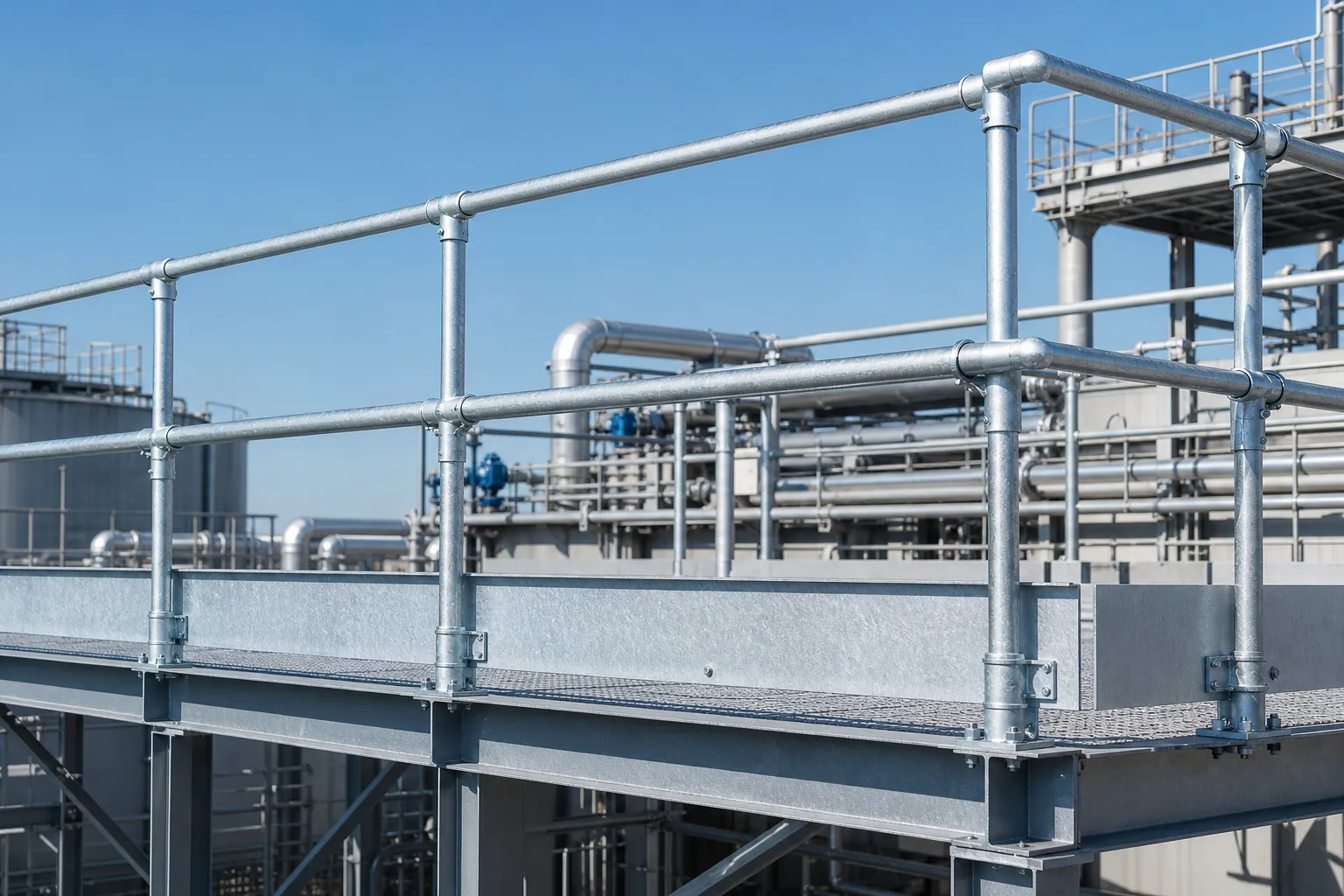

Handrails & Guardrails
Tubular steel edge protection fabricated to your drawings. Supplied with platforms, walkways and stairs as one coordinated package.
Configured for industrial projects
Built around your operating conditions.
Tubular steel edge protection fabricated to your drawings. Supplied with platforms, walkways and stairs as one coordinated package.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
At a glance
- Posts, top rails and intermediate rails — Ø33.7 mm or Ø42.4 mm
- Base plates — 150 × 150 × 10 mm, 4 bolt holes
- Top rail height 1050 mm (OSHA) / ≥1100 mm (EN), mid-rail ~530 mm
- Post spacing ≤1500 mm c/c. Tighter for heavy-duty or high-wind
- Toe plate 100 mm × 4 mm. Welded to frames or guardrail posts
- 90° elbows, tees, crosses, sleeves and swivel joints available
Specifications
| Parameter | Standard range |
|---|---|
| Post / Rail OD | Ø33.7 mm, Ø42.4 mm, Ø48.3 mm, Ø50 mm |
| Wall thickness | 2.5–3.2 mm |
| Base plate | 150 × 150 × 10 mm, 4 bolt holes |
| Top rail height | 1050 mm (OSHA 1910.29) / ≥1100 mm (EN 14122) |
| Mid-rail height | ~530 mm (OSHA) / ≤500 mm (EN) |
| Post spacing | ≤1500 mm c/c. Tighter for heavy-duty or wind |
| Material | Q235B / SS400 HDG ≥85µm; 304 / 316L stainless |
Supplied with
Selection support
What to confirm before quotation.
Ø42.4mm tubular. HDG standard; 316L for offshore; powder-coat color options for visibility.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Typical industries
Send drawing with rail layout and post positions.
Fabricated and coordinated — not an off-the-shelf item.
