Application
State the operating area, access frequency and any wet, corrosive or public-safety conditions.
Coordinated project component
Fixings & Accessories

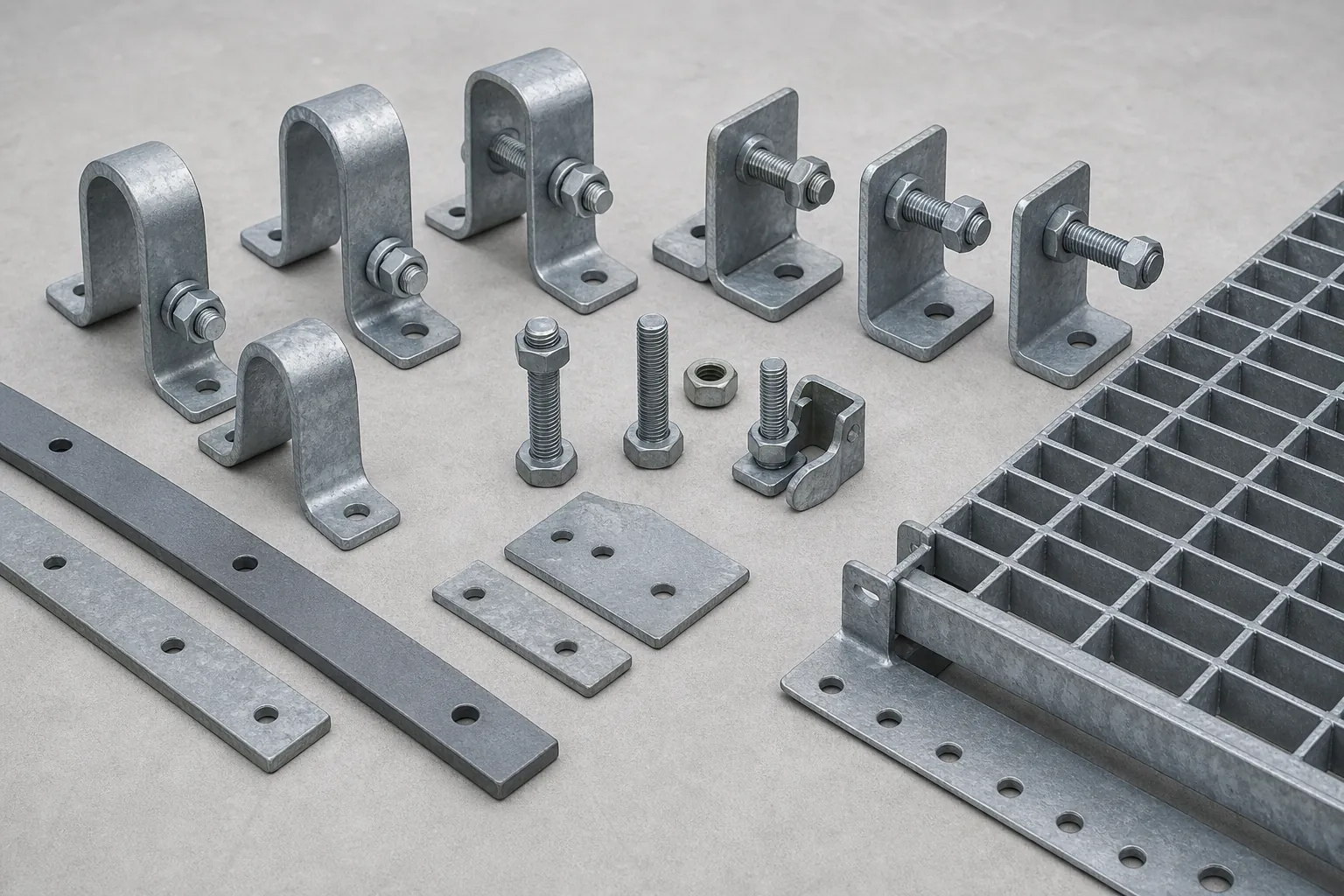

Grating clips, bolts, toe plates and anchor components. Supplied with complete packages or as separate line items.
Configured for industrial projects
Built around your operating conditions.
Grating clips, bolts, toe plates and anchor components. Supplied with complete packages or as separate line items.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
At a glance

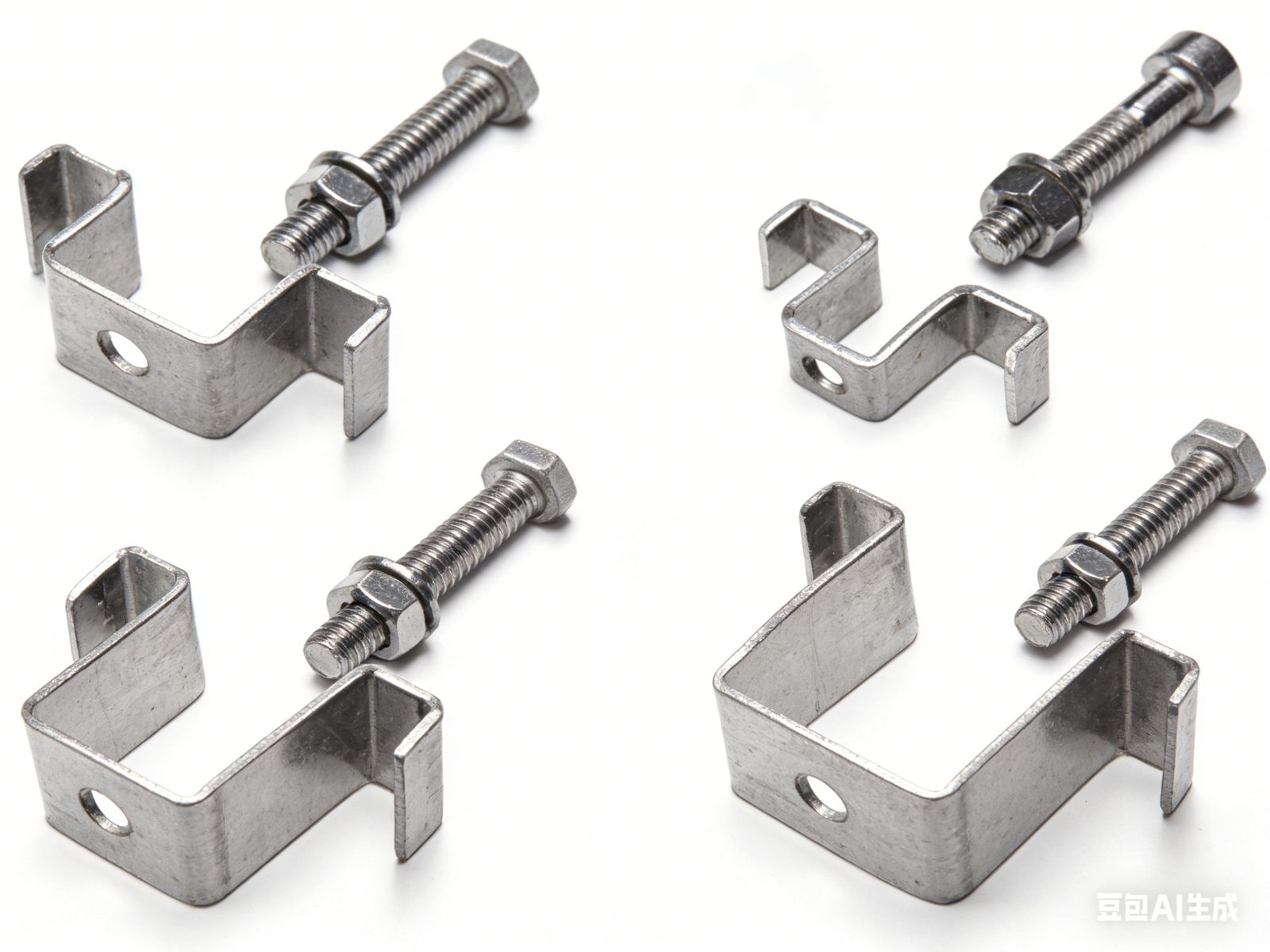

- Saddle clip (M-type) — clamps two adjacent panels to a common support beam

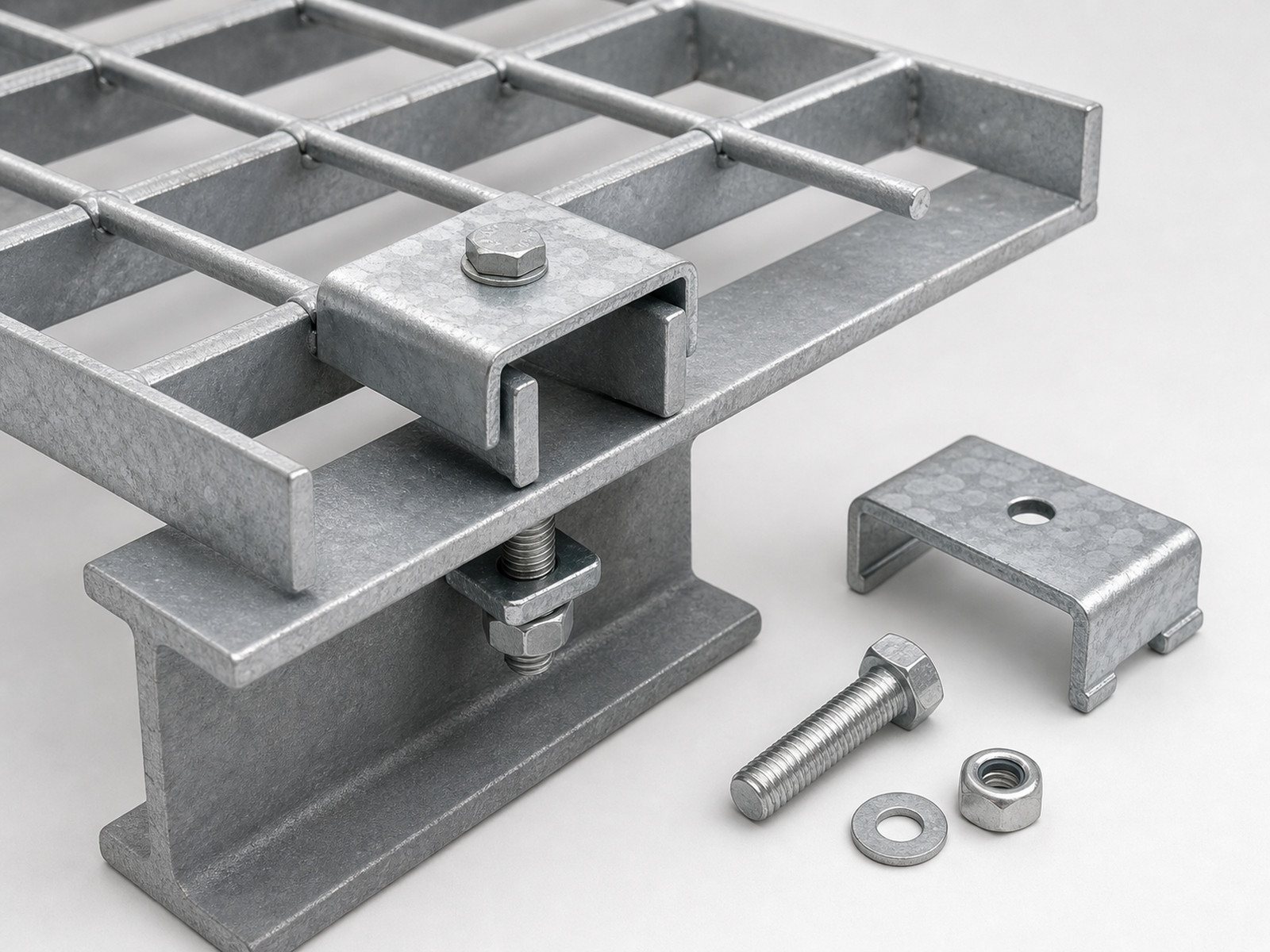

- Hold-down clip — secures a single panel edge at wall-adjacent ends

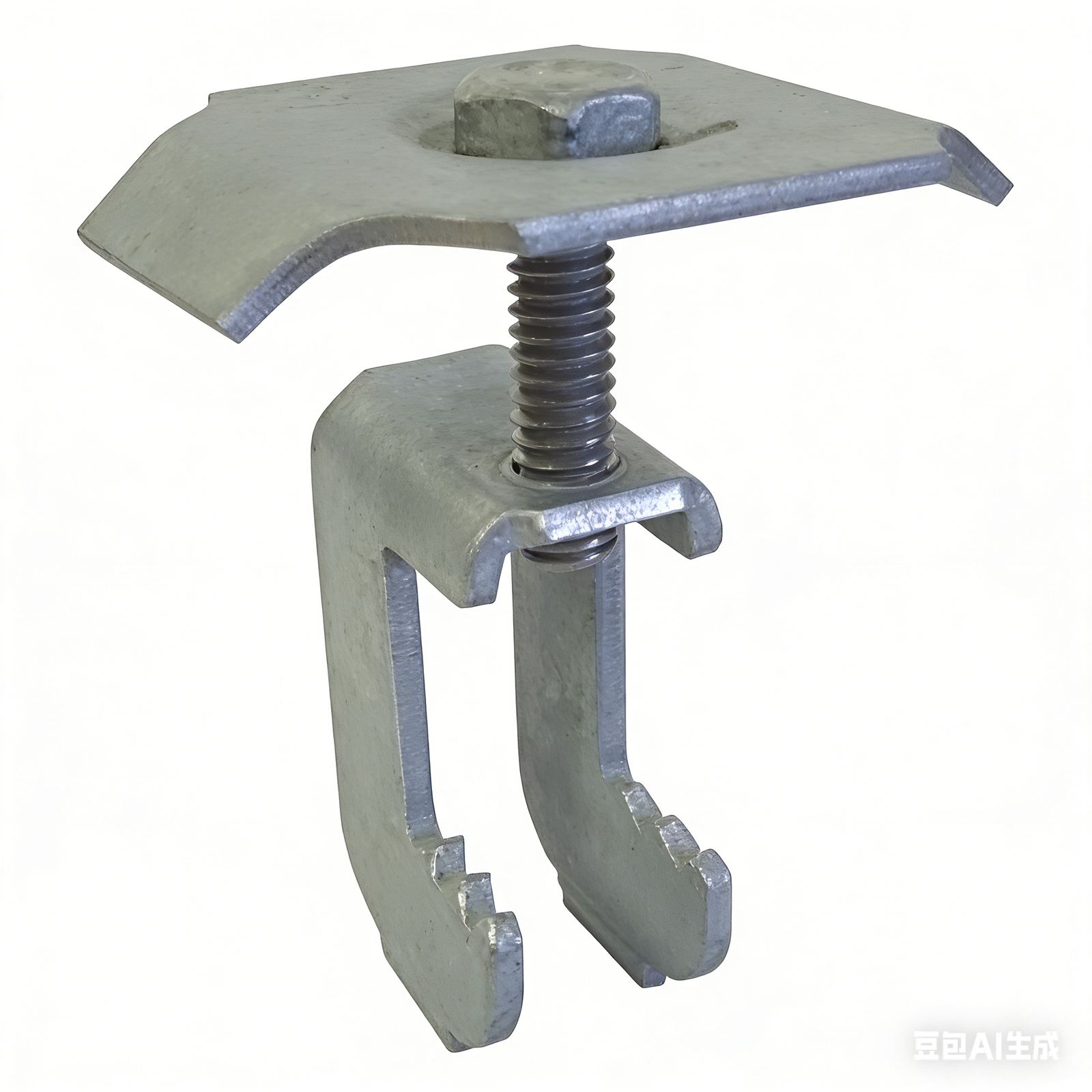

- G-clip (joining) — connects adjacent panels on a shared support
- Z-clip — compact single-sided fixing for tight clearance

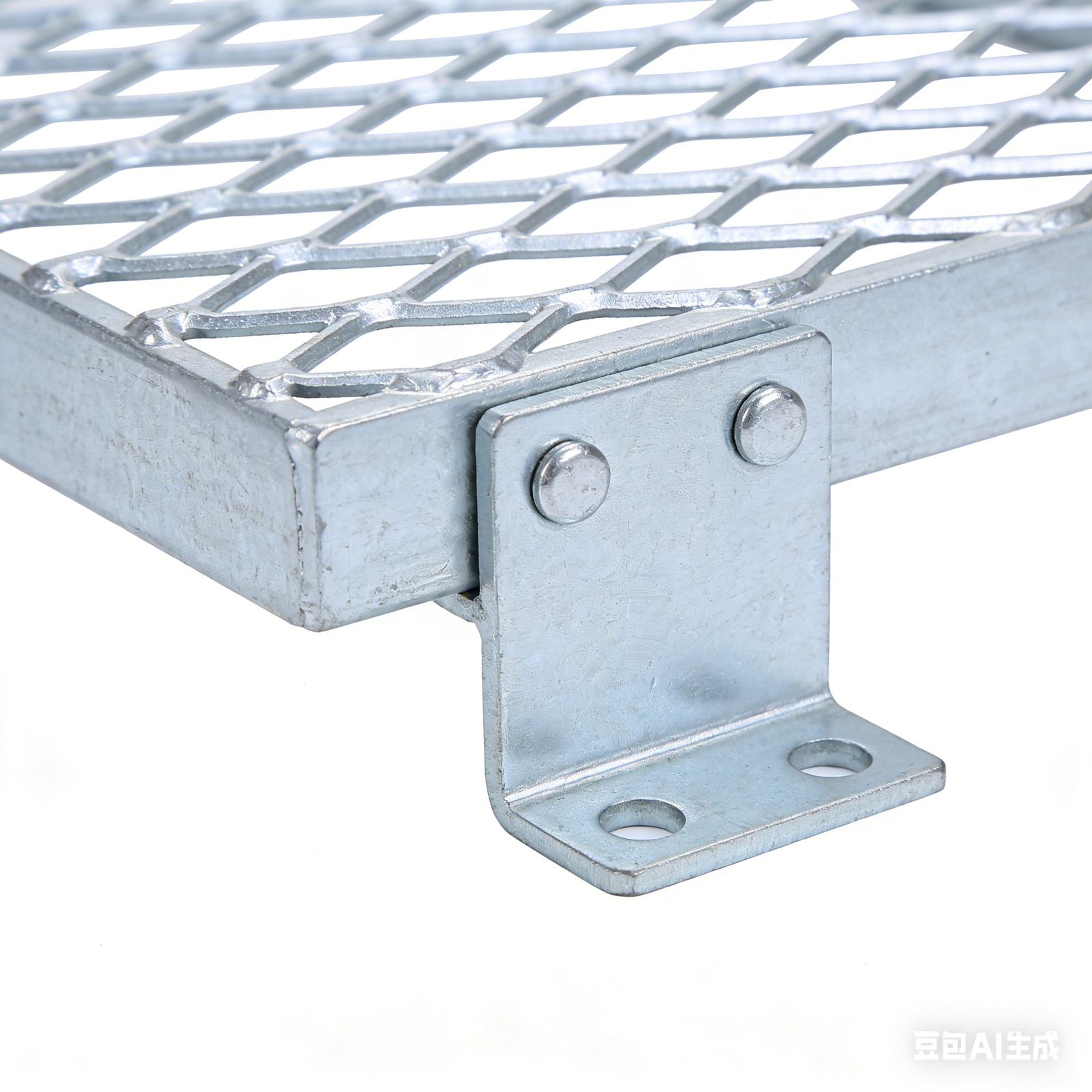

- Banding bar — flat bar welded to grating edges for trim or load
- Toe plate — 100 mm high × 4 mm edge protection
- Anchor bolts — J-bolt, L-bolt, wedge. M12–M20, HDG or 316L
Clip and fastener types
| Type | Application | Material |
|---|---|---|
| Saddle clip (M-type) | Clamps two adjacent panels to common support beam | Q235B HDG · 304 · 316L |
| Hold-down clip | Secures single panel edge at wall or pier | Q235B HDG · 304 · 316L |
| G-clip (joining) | Connects adjacent panels on shared support | Q235B HDG · 304 · 316L |
| Z-clip | Compact single-sided fixing for tight clearance | Q235B HDG · 304 |
| Banding bar | Welded to grating edges. Trim or load-carrying | Q235B · SS400 HDG |
| Toe plate | 100 × 4 mm. Welded to frames or guardrail posts | Q235B HDG · 304 · 316L |
| Anchor bolts | J-bolt, L-bolt, wedge · M12–M20 | 8.8-grade HDG · 316L |
Supplied with
Selection support
What to confirm before quotation.
Saddle clips, hold-downs, panel joiners, banding bars, toe plates — complete the installation.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Typical industries
Send panel count and clip preference.
Included with packages or supplied separately.
