Application
State the operating area, access frequency and any wet, corrosive or public-safety conditions.
Manufactured component

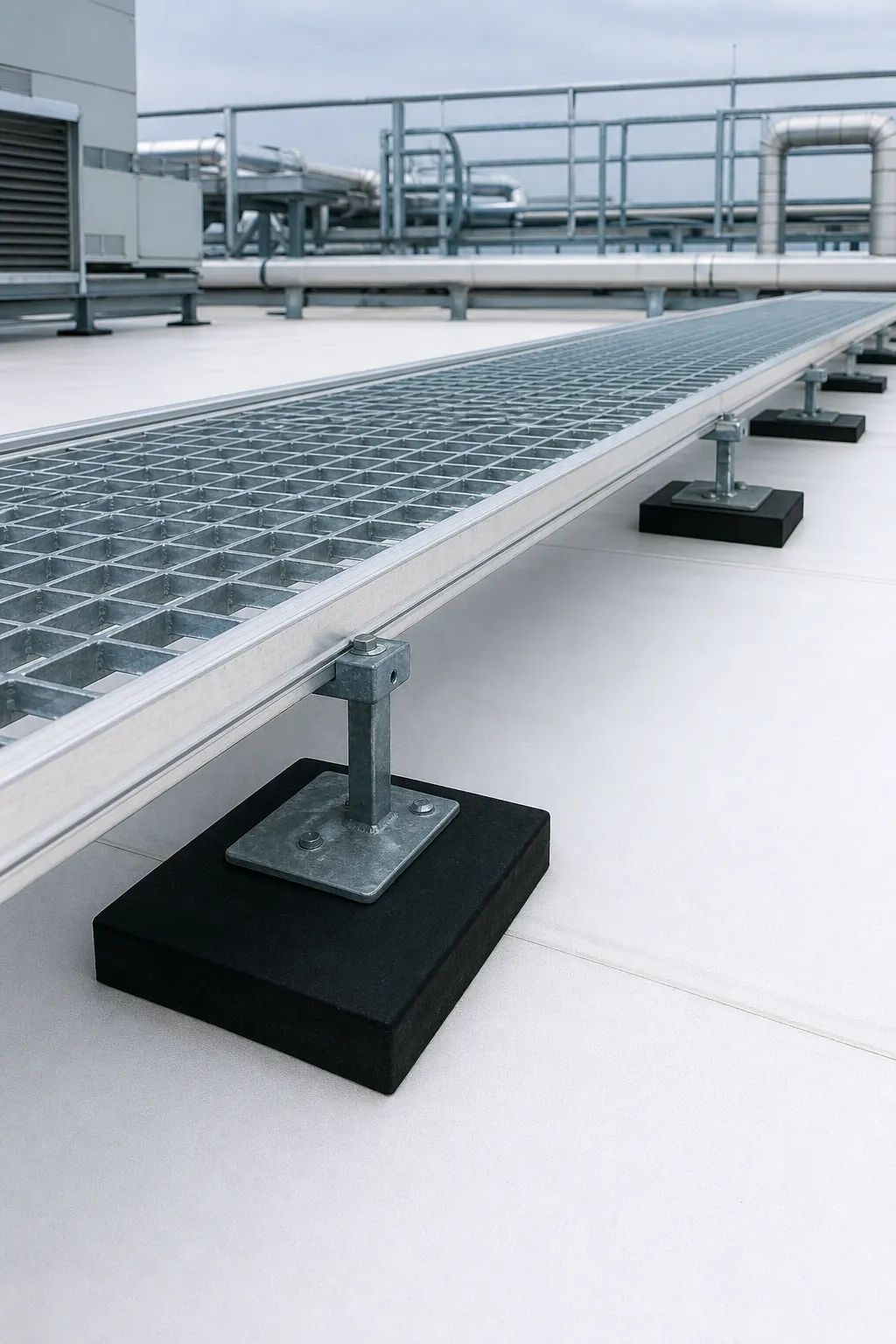

Rooftop Walkway Support Pads
Non-penetrating EPDM rubber support pads for rooftop walkway systems. Protects roof membranes — used with aluminium or galvanized steel grating.
Material & finish optionsCarbon steel / SS400 — HDGStainless steel — 304 / 316LOther materials on request
Configured for industrial projects
Built around your operating conditions.
Non-penetrating EPDM rubber support pads for rooftop walkway systems. Protects roof membranes — used with aluminium or galvanized steel grating.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
What we supply
- EPDM rubber pads — Shore A 65–75 hardness. UV-stabilised for outdoor exposure. 20+ year design life
- Standard sizes: 300 × 300 mm, 400 × 400 mm, 500 × 500 mm. Thickness: 15–30 mm
- Load capacity per pad: ≥ 450 kg under uniform distribution (confirmed against roof substrate)
- Non-penetrating design — sits directly on TPO, PVC or EPDM roof membranes. No fasteners through the roof
- Optional metal top plate — galvanized steel tray for grating panel seating and alignment
- FM-approved material options available where project specifications require
- Pads supplied with walkway grating package or as separate items for retrofit
Used in
Systems
Industries
How to order
- Pad size and quantity
- Roof membrane type for material compatibility
- Grating type and weight (to confirm load distribution)
- Delivery destination
Supplied to your drawings and project standard. Load tables → · Downloads →
Selection support
What to confirm before quotation.
Share the application, load, span, material and finish with the RFQ.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Discuss the operating environment with our engineering team.
Typical industries
Discuss the operating environment with our engineering team.
Complete the system
