Application
State the operating area, access frequency and any wet, corrosive or public-safety conditions.
Manufactured component
Anti-Slip Safety Grating

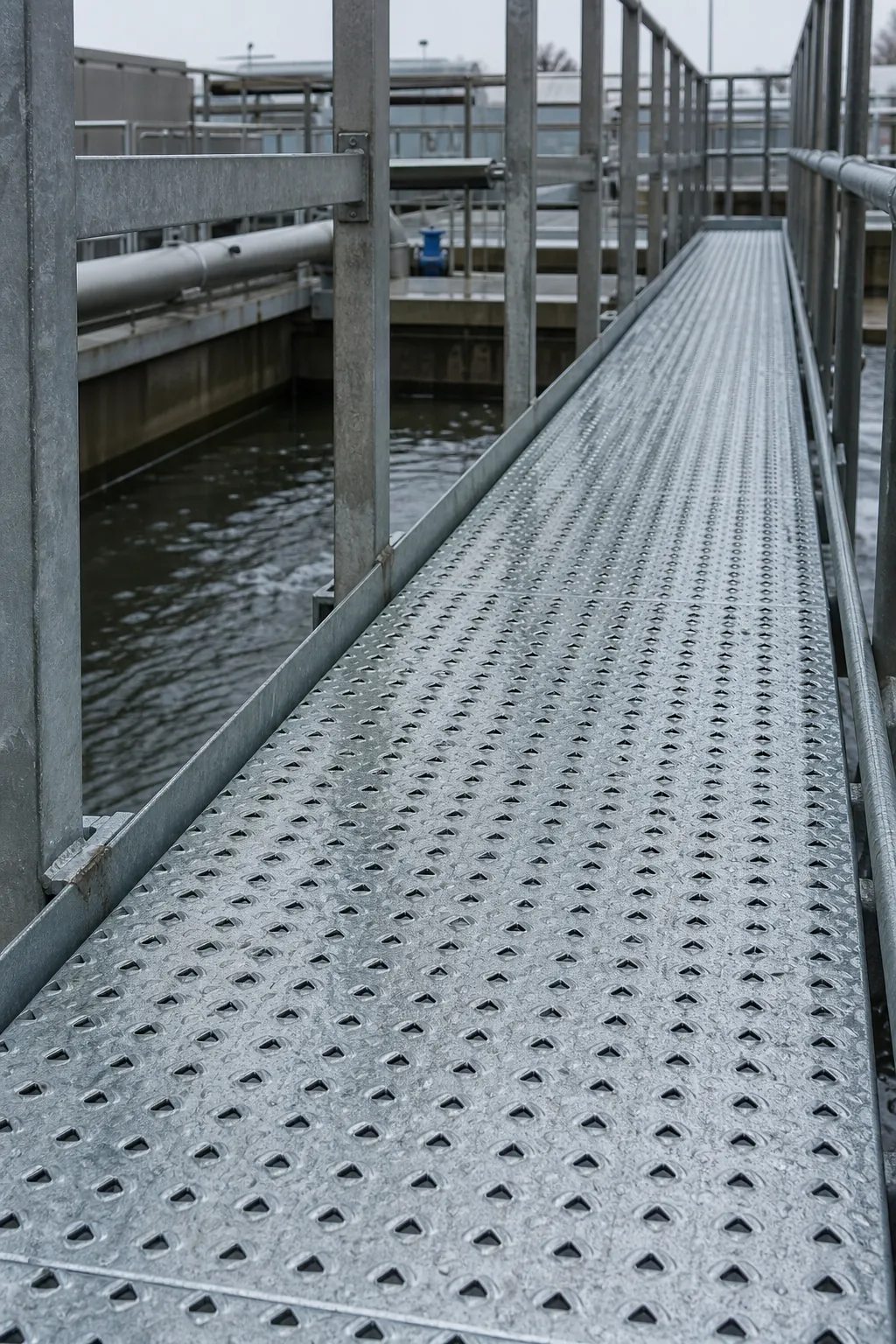

Pressed safety grating and grip-strut planks for high-slip-risk industrial areas. Serrated and perforated surfaces for oil platforms, chemical plants and wet process areas.
Material & finish optionsCarbon steel / SS400 — HDGStainless steel — 304 / 316LOther materials on request
Configured for industrial projects
Built around your operating conditions.
Pressed safety grating and grip-strut planks for high-slip-risk industrial areas. Serrated and perforated surfaces for oil platforms, chemical plants and wet process areas.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
What we supply
- Serrated safety grating — one-piece pressed steel plank with raised anti-slip teeth. Slip resistance AS 4586 R12 / ≥0.6 COF
- Perforated safety grating — drainage holes + embossed grip pattern. 40–60% open area
- Carbon steel — ASTM A36 / S275JR, hot-dip galvanized to ASTM A123 / EN ISO 1461
- Stainless steel 304/316L for offshore, marine and food-processing environments
- Aluminium 6063-T5 for lightweight, non-spark and non-magnetic applications
- Standard plank widths: 150, 200, 250, 300 mm. Thickness: 2.0–3.0 mm. Length up to 6000 mm
- Fixing accessories — matching stainless or galvanized clips and bolts included per panel count
Used in
How to order
- Plank width, thickness and length required
- Surface type: serrated / perforated / embossed
- Material: carbon steel HDG / 316L / aluminium 6063
- Panel count and delivery destination
Supplied to your drawings and project standard. Load tables → · Downloads →
Selection support
What to confirm before quotation.
Share the application, load, span, material and finish with the RFQ.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Discuss the operating environment with our engineering team.
Typical industries
Discuss the operating environment with our engineering team.
