Manufactured component

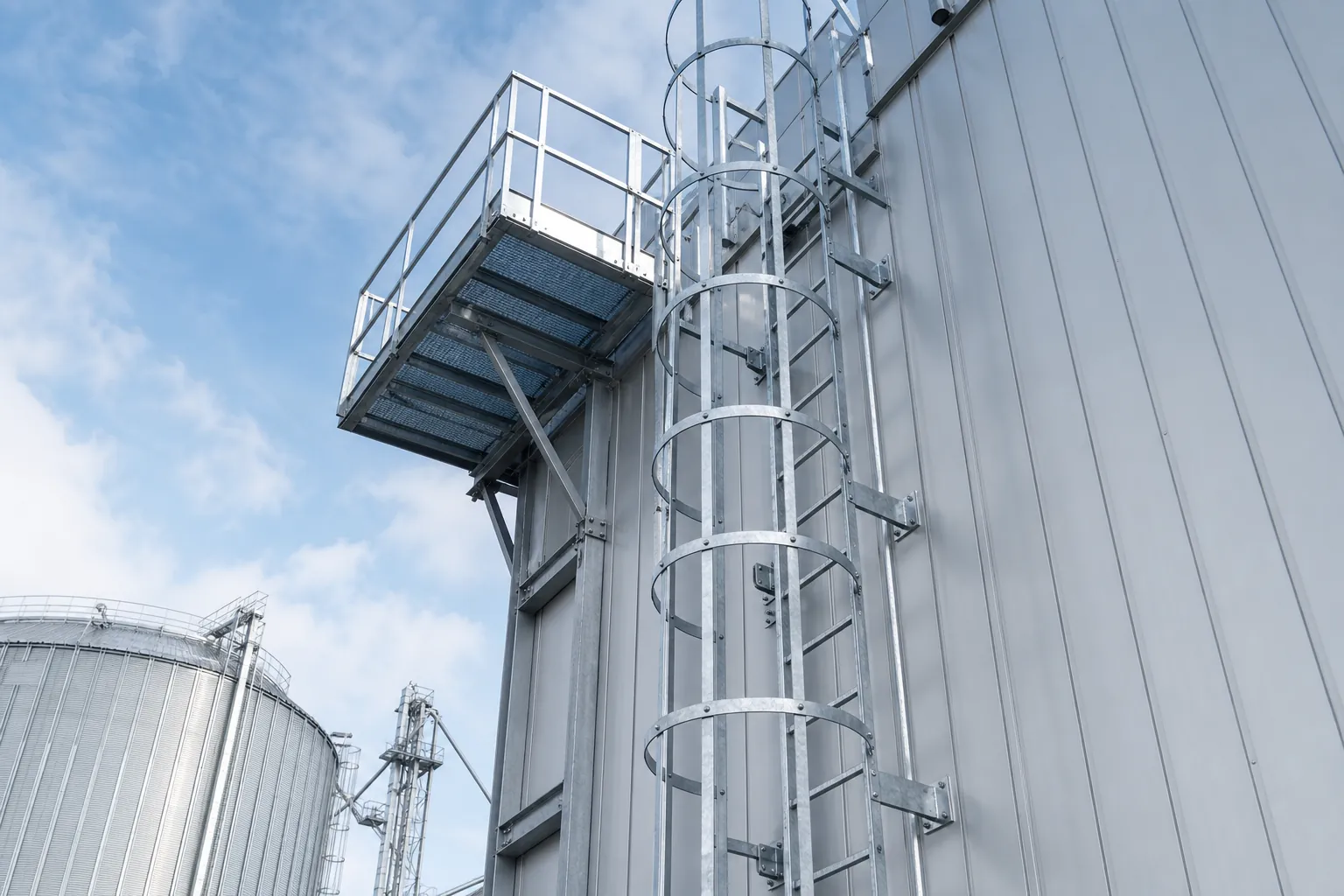

Ladders & Cage Ladders
Fixed vertical steel access with safety cage hoops. Fabricated to your structure height and mounting surface.
Configured for industrial projects
Built around your operating conditions.
Fixed vertical steel access with safety cage hoops. Fabricated to your structure height and mounting surface.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
At a glance
- Clear width 400–600 mm between stiles. Rung spacing 250–300 mm
- Ø700 mm cage hoops, ≤1000 mm vertical spacing starting at 2.2 m
- Round bar rungs Ø18–20 mm, serrated anti-slip option
- Stiles 60 × 10 mm or 60 × 12 mm flat bar — Q235B / SS400
- Wall brackets, floor base plates and bolted frame connections included
Specifications
| Parameter | Standard range |
|---|---|
| Clear width | 400–600 mm between stiles |
| Rung spacing | 250–300 mm (OSHA 1910.27 / EN 14122) |
| Rung profile | Ø18–20 mm round bar, serrated option |
| Stiles | 60 × 10 mm or 60 × 12 mm flat bar |
| Cage hoops | Ø700 mm, ≤1000 mm spacing (OSHA) |
| Cage start | 2200 mm above floor, extends to top landing |
| Material | Q235B / SS400 HDG ≥85µm; 304 / 316L |
Supplied with
Selection support
What to confirm before quotation.
500mm wide, Ø700mm cage hoops at 900mm spacing. Vertical access to tanks, towers, silos.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Typical industries
Send total vertical rise and cage requirement.
Fabricated by the manufacturer to your dimensions.
