Application
State the operating area, access frequency and any wet, corrosive or public-safety conditions.
FRP Grating

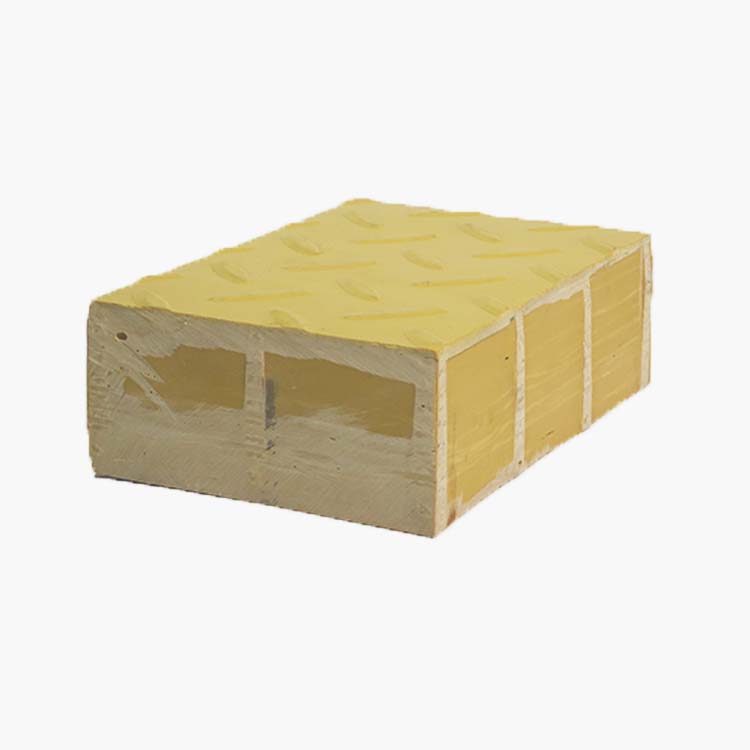

Chemical-Resistant FRP Grating
Vinyl ester resin for aggressive acid, alkali and solvent exposure.
Material & finishCarbon steel — HDG to ASTM A123Stainless — 304 / 316LBS 4592 / NAAMM / EN standards
Configured for industrial projects
Built around your operating conditions.
Vinyl ester resin for aggressive acid, alkali and solvent exposure.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
Specifications
- Vinyl ester resin—resists H2SO4, HCl, NaOH and organic solvents
- 38x38mm mesh, 38mm or 50mm thick. Grit-top surface
- For chemical bunds, pickling lines, bleach plants
- Temperature: 100C continuous. Not for hydrofluoric acid
- Colour: dark grey or green standard
Used in
Industries
How to order
- Dimensions, size and surface type
- Material: carbon steel HDG / 304 / 316L / FRP
- Quantity or total area to cover
- Cut-outs, banding and fixing requirements
- Delivery destination and governing standard
MTC and certificates per order. Load tables → · Downloads →
Selection support
What to confirm before quotation.
Special resin formulation for acids, alkalis, and aggressive chemical splash zones.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
Typical systems
Discuss the operating environment with our engineering team.
Typical industries
Complete the package
