Bar Grating

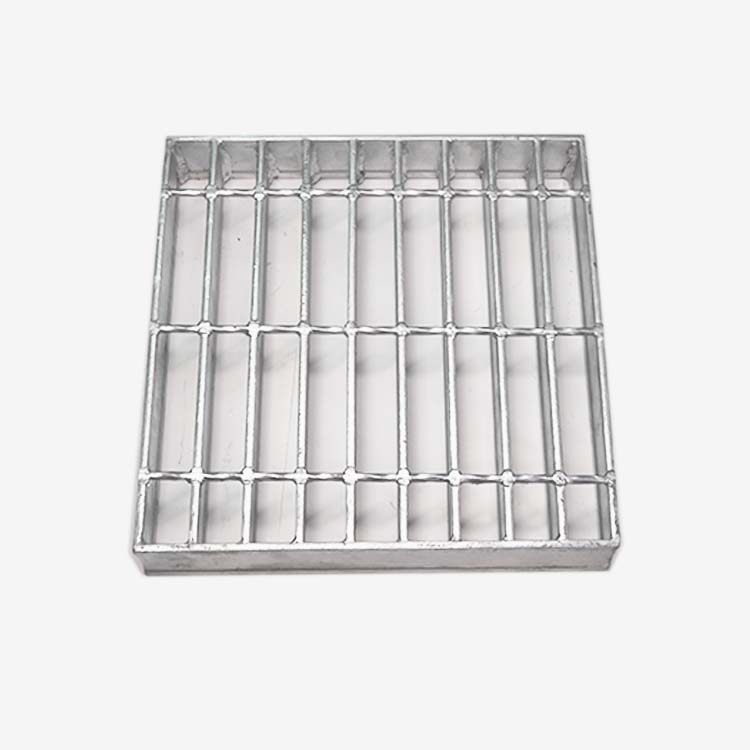

Ball-Proof Grating
Openings limited so a defined test ball cannot pass. Fall-through protection for elevated areas.
Material & finishCarbon steel — HDG to ASTM A123Stainless — 304 / 316LBS 4592 / NAAMM / EN standards
Configured for industrial projects
Built around your operating conditions.
Openings limited so a defined test ball cannot pass. Fall-through protection for elevated areas.
- Dimensions, material and finish confirmed against drawings
- Engineering support for spans, loads, installation and standards
- Coordinated supply with frames, fixings and edge protection
Specifications
- Bearing bar spacing selected so a 20mm or 35mm test ball cannot pass through
- 20mm opening: extra-fine mesh. 35mm opening: standard drop-protection per AS 1657
- Used under elevated walkways, above pedestrian zones and public areas
- Material: carbon steel HDG. Stainless 304/316L
Used in
Industries
How to order
- Bearing bar size, spacing and cross-rod pitch
- Plain or serrated surface
- Material: carbon steel HDG / 304 / 316L
- Panel dimensions, quantity and bearing bar direction
- Cut-outs, banding, toe plate and fixing clip requirements
Manufactured to your project standard. MTC and certificates per order. Load tables → · Downloads →
Selection support
What to confirm before quotation.
35mm or 20mm openings — fall-through protection for elevated areas with personnel below.
Engineering inputs
Provide clear span, bearing direction, design load, dimensions and required standards.
Supply scope
Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.
