Does serration reduce load capacity?

For the same bar dimensions and spacing, capacity is taken as equivalent to plain top in most catalogs; confirm with the supplier table footnotes.

Can serrated grating be galvanized?

Yes; serrated profiles are routinely hot-dip galvanized after fabrication.

When is serrated unnecessary?

Dry indoor storage mezzanines with low slip hazard may use plain tops—document the HSE basis.

How do I match stair treads?

Specify the same mesh family and nosing detail as platforms for visual and gait continuity.

Is press-locked serrated available?

Yes in many meshes; ask during RFQ if architectural flatness is also required.

What standards reference slip?

Owner HSE and local codes govern; grating provides the surface texture input to those rules.

Home/Products/Bar Grating/Serrated Steel Bar Grating

Bar Grating

Serrated Steel Bar Grating

Bearing bars with notched top surface for enhanced slip resistance. Standard in wet, oily and outdoor industrial environments.

Send Grating Schedule See Specifications

Material & finishCarbon steel — HDG to ASTM A123Stainless — 304 / 316LManufactured to BS 4592 / NAAMM / EN

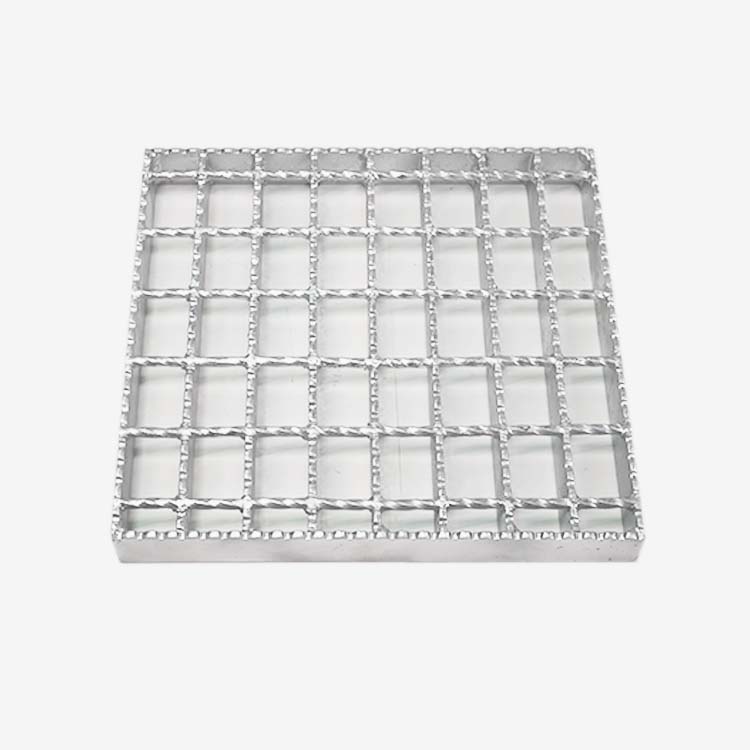

Serrated steel bar grating with anti-slip bearing bars

Configured for industrial projects

Built around your operating conditions.

Bearing bars with notched top surface for enhanced slip resistance. Standard in wet, oily and outdoor industrial environments.

Dimensions, material and finish confirmed against drawings
Engineering support for spans, loads, installation and standards
Coordinated supply with frames, fixings and edge protection

Send Grating Schedule

Specifications

Serrated bearing bars — saw-tooth notches on the top edge of each load bar. Same construction as welded or press-locked grating
Bearing bars: 25 × 5 through 50 × 5 mm (serrations reduce bar depth slightly from plain equivalent)
Spacing: 30 mm standard for maximum slip resistance. 40 mm for light-duty
Material: carbon steel ASTM A36 / S275JR hot-dip galvanized. Stainless 316L for marine and chemical
Applications: offshore platforms, refinery process areas, cooling towers, outdoor walkways, oil-exposed zones
Slip resistance meets AS 4586 R12 / EN 13201-4 requirements

Used in

Systems

Platform Systems→ Walkway Systems→ Stair Systems→

Industries

Petrochemical→ Power Generation→ Water & Wastewater→ Marine & Offshore→

How to order

Bearing bar size, spacing and cross-rod pitch — or known model designation (e.g. 32 × 5 / 30 mm pitch)
Plain or serrated surface
Material: carbon steel HDG / 304 / 316L
Panel dimensions, quantity and bearing bar direction
Cut-outs, banding, toe plate and fixing clip requirements

Manufactured to your project standard. MTC and galvanizing certificates per order. Load tables → · Downloads →

Send Grating Schedule

Selection support

What to confirm before quotation.

Anti-slip for wet, oily, and outdoor areas. HDG ≥100µm for coastal; 316L for offshore.

Application

State the operating area, access frequency and any wet, corrosive or public-safety conditions.

Engineering inputs

Provide clear span, bearing direction, design load, dimensions and required standards.

Supply scope

Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.

Typical systems

Platform Systems Walkway Systems Stair Systems

Typical industries

Petrochemical Power Generation Water & Wastewater Marine & Offshore Mining & Metals
