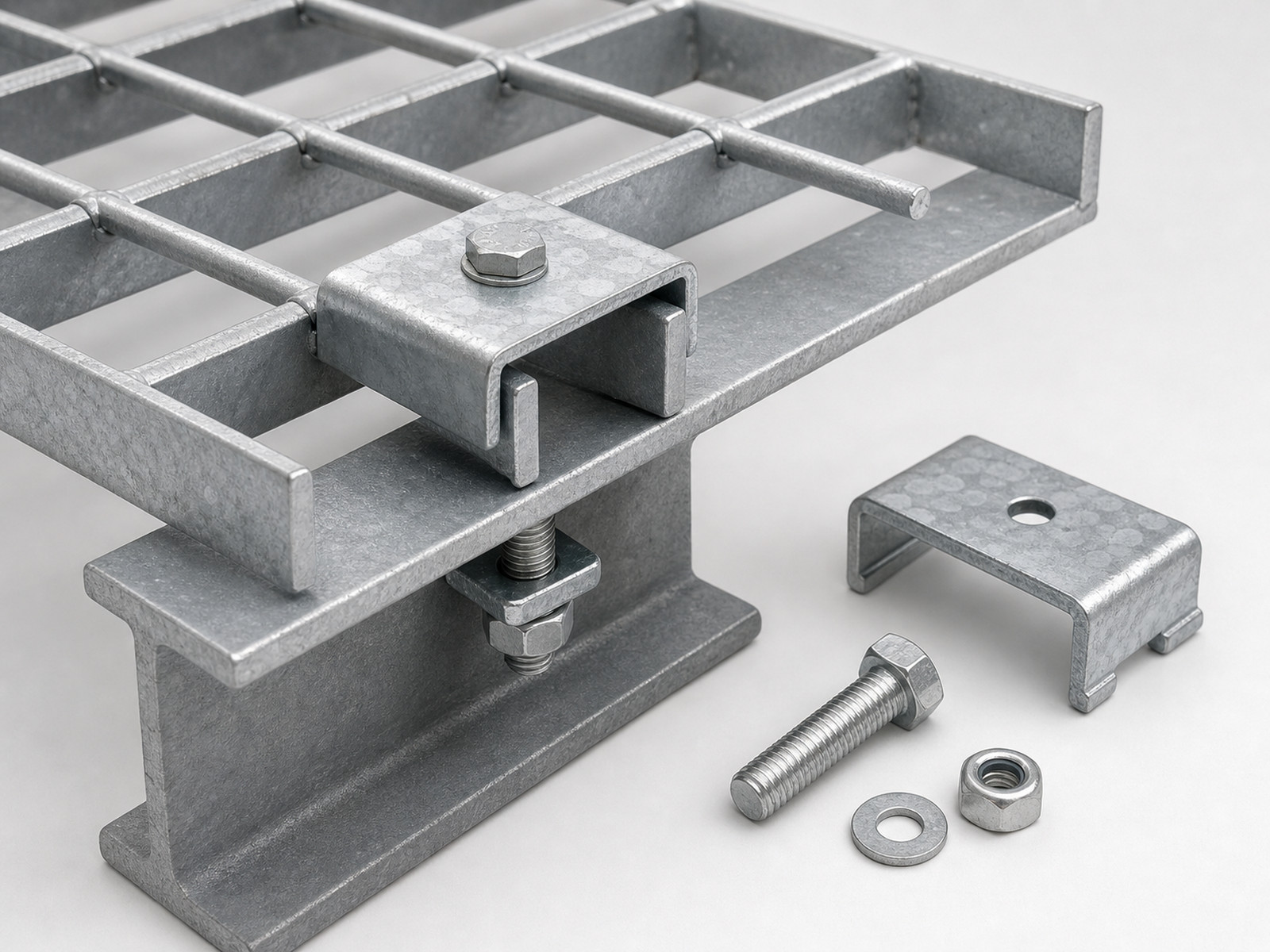

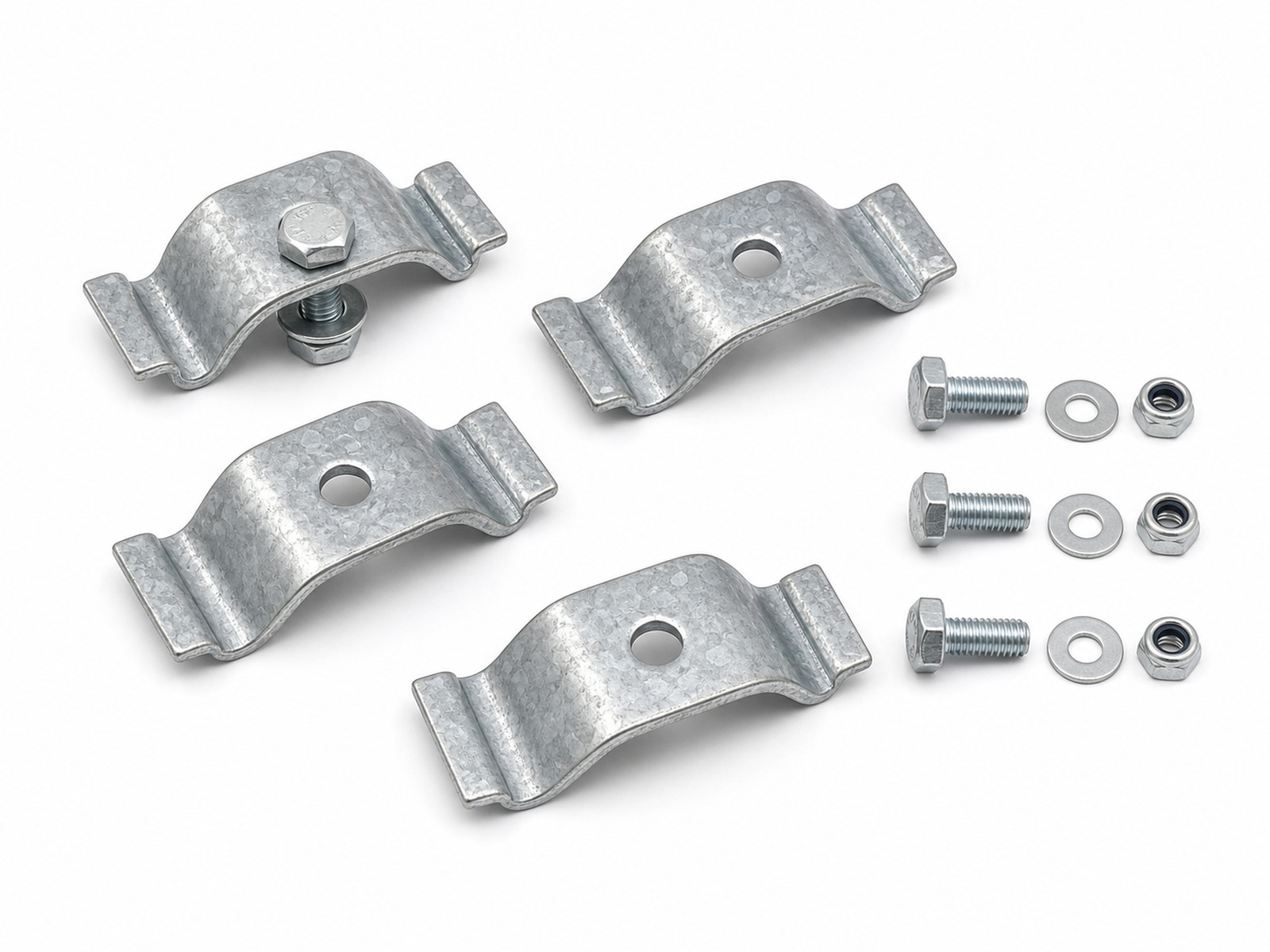

Saddle clips for grating fixation
Saddle clips for secure grating panel fixing to support structures. Used for welded or bolted grating installation in industrial platforms and walkways.
Product Description
Saddle clips are U-shaped or saddle-shaped clips that wrap around bearing bars to secure grating panels to support beams or stringers. They provide positive fixing without welding on-site and allow for thermal expansion. Saddle clips are commonly used with welded and press-locked grating for platforms, walkways, and stair treads. Available in carbon steel or stainless steel to match grating material and finish.
| Specification | Details |
|---|---|
| Function | Secure grating panels to support structures without welding |
| Typical use | Platforms, walkways, stair treads, trench covers |
| Materials | Carbon steel, stainless steel (304, 316) |
| Finishes | Hot-dip galvanized, painted, stainless |
| Sizes | To suit bearing bar spacing; specify grating type for correct clip |
| Installation | Bolted or welded to support; spacing per load requirements |
